VS-0618H1-SWIR
The VS-0618H1-SWIR, a distinguished model within the VS-H1-SWIR Series of Fixed Focal Length Lenses. With a focal length of 6mm and a minimum object distance (M.O.D) of 100mm, this lens is meticulously designed to deliver exceptional imaging performance. Boasting an aperture range from F1.8 to F16, the VS-0618H1-SWIR excels in capturing detailed and high-quality images across a spectrum of lighting conditions. The C-mount configuration enhances versatility and compatibility, ensuring seamless integration with a variety of imaging setups. Whether applied in industrial, scientific, or surveillance applications, the VS-0618H1-SWIR exemplifies the advanced features of the VS-H1-SWIR Series, providing reliable and precise Fixed Focal Length capabilities for Short-Wave Infrared imaging.
| Model | VS-0618H1-SWIR |
|---|---|
| Focal Length (f) | 6 mm |
| Maximum Aperture Ration | 1: 1.8 |
| Aperture | F 1.8 ~ 16 |
| Angle of view | 87. 3° × 87.3° ( Diagonal 107) |
| M.O.D | 100 |
| TV Distortion | -0.61% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Short Wave IR |
| Mount | C-mount |
| Flange Back | 17.526 mm |
| Sensor Size(Max) | 1" |
| Weight (Approx) | 205g |

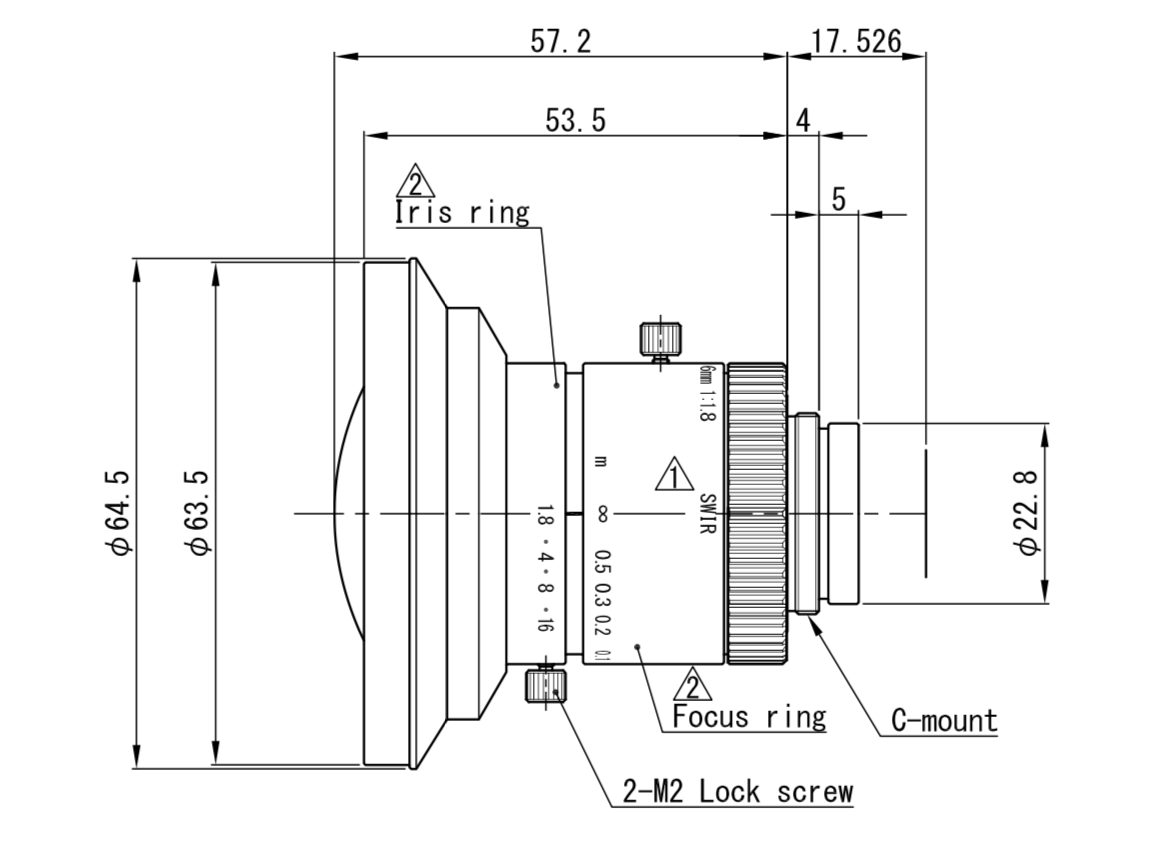

| Dimension | φ64.5(max.) × L = 57.2mm |
