VS-1614H1N-SWIR
SWIR Fixed Focal Length Lenses support 1" sensor size.
Main > Product > Machine Vision Lenses > UV and SWIR Lens > VS-H1-SWIR Series > VS-1614H1N-SWIR
VS-1614H1N-SWIR
The VS-1614H1N-SWIR, a distinguished model within the VS-H1-SWIR Series of Fixed Focal Length Lenses. With a focal length of 16mm and a minimum object distance (M.O.D) of 300mm, this lens is meticulously designed to deliver exceptional imaging performance. Boasting an aperture range from F1.4 to F16, the VS-1614H1N-SWIR excels in capturing detailed and high-quality images across a spectrum of lighting conditions. The C-mount configuration enhances versatility and compatibility, ensuring seamless integration with a variety of imaging setups. Whether applied in industrial, scientific, or surveillance applications, the VS-1614H1N-SWIR exemplifies the advanced features of the VS-H1-SWIR Series, providing reliable and precise Fixed Focal Length capabilities for Short-Wave Infrared imaging.
| Model | VS-1614H1N-SWIR |
|---|---|
| Focal Length (f) | 16 mm |
| Maximum Aperture Ration | 1: 1.4 |
| Aperture | F 1.4 ~ 16 |
| Angle of view | 38.6° × 38.6° ( Diagonal 5.35) |
| M.O.D | 300 |
| TV Distortion | -0.65% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Short Wave IR |
| Mount | C-mount |
| Flange Back | 17.526 mm |
| Sensor Size(Max) | 1" |
| Filter Thread | M 30.5 P 0.5 |
| Weight (Approx) | 120g |

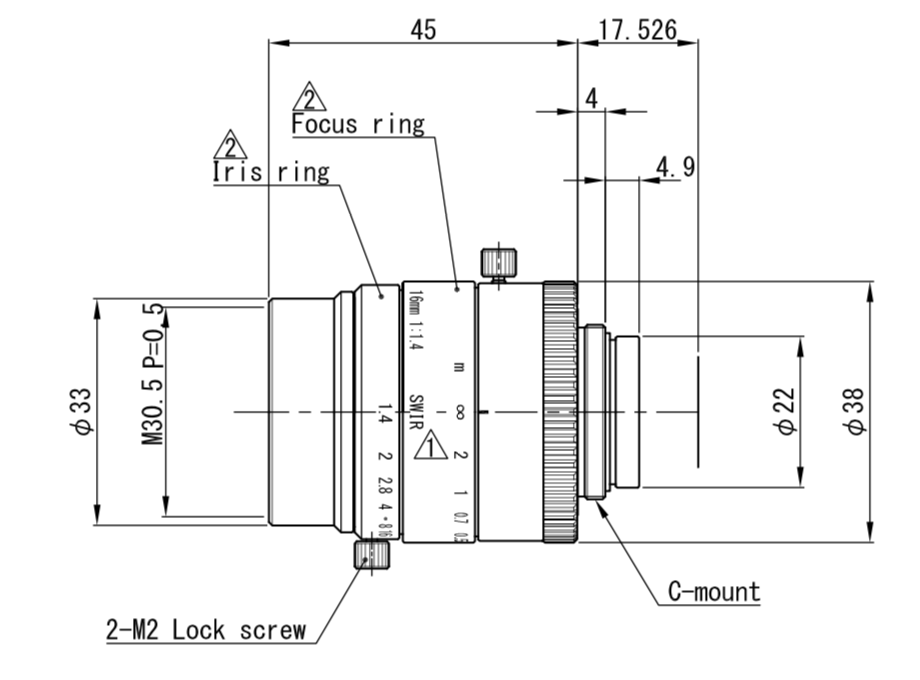

| Dimension | φ38(max.) × L = 45mm |
