VS-MC03-135
VS-MC series made to cover a reasonably wide magnification range with almost 0% distortion.Its compact size, in combination with an optical mirror or prism, effectively allows you to place your camera in a convenient location for your application.
| Model | VS-MC03-135 | |
|---|---|---|
| Optical mag. | × 0.3 ± 5 % | |
| Focal Length | 33.7 mm | |
| 2/3" | 23.7 x 28.0mm | |
| FOV (VxH mm) | 1/2" | 16.0 x 21.30 mm |
| 1/3" | 12.0 x 16.0mm | |
| WD | 138.7 mm ± 6 | |
| O/I (Object & Imager distance) | 190.9 mm | |
| Working F/# | 5.3 | |
| NA | 0.028 | |
| DOF at PCoC φ0.04mm | 4.7 mm | |
| TV distortion | 0.00 % | |
| Relative Illuminance (Y=5.5) | 93 % | |
| Wavelength | Visible | |
| Camera mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Weight (approx.) | 16 g | |

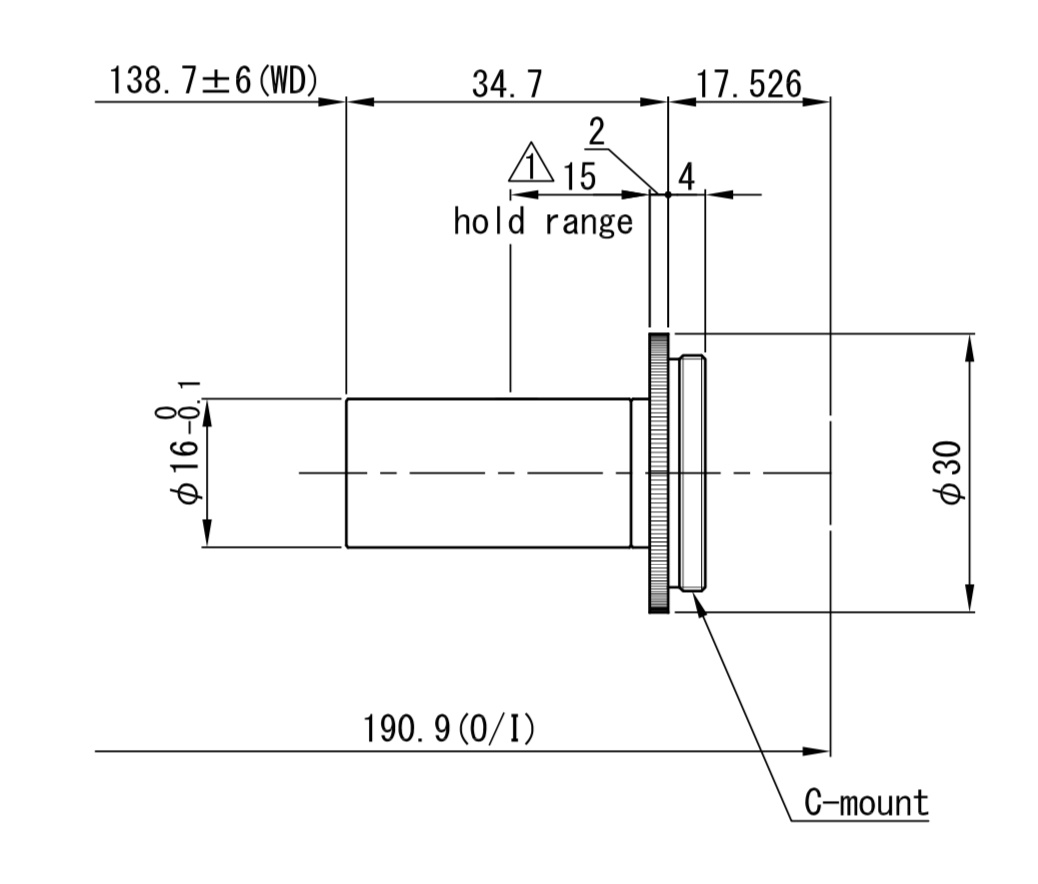

| Dimension | Φ 30 (MAX) × L = 34.7 mm |
