VS-MC05-65
VS-MC series made to cover a reasonably wide magnification range with almost 0% distortion.Its compact size, in combination with an optical mirror or prism, effectively allows you to place your camera in a convenient location for your application.
| Model | VS-MC05-65 | |
|---|---|---|
| Optical mag. | × 0.5 ± 5 % | |
| Focal Length | 27.5 mm | |
| 2/3" | 14.2 x 16.8 mm | |
| FOV (VxH mm) | 1/2" | 9.2 x 12.8 mm |
| 1/3" | 7.2 x 9.6 mm | |
| WD | 69.1mm ±3 | |
| O/I (Object & Imager distance) | 121.6 mm | |
| Working F/# | 6.0 | |
| NA | 0.042 | |
| DOF at PCoC φ0.04mm | 1.9 mm | |
| TV distortion | -0.02 % | |
| Relative Illuminance (Y=5.5) | 98 % | |
| Wavelength | Visible | |
| Camera mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Weight (approx.) | 17 g | |

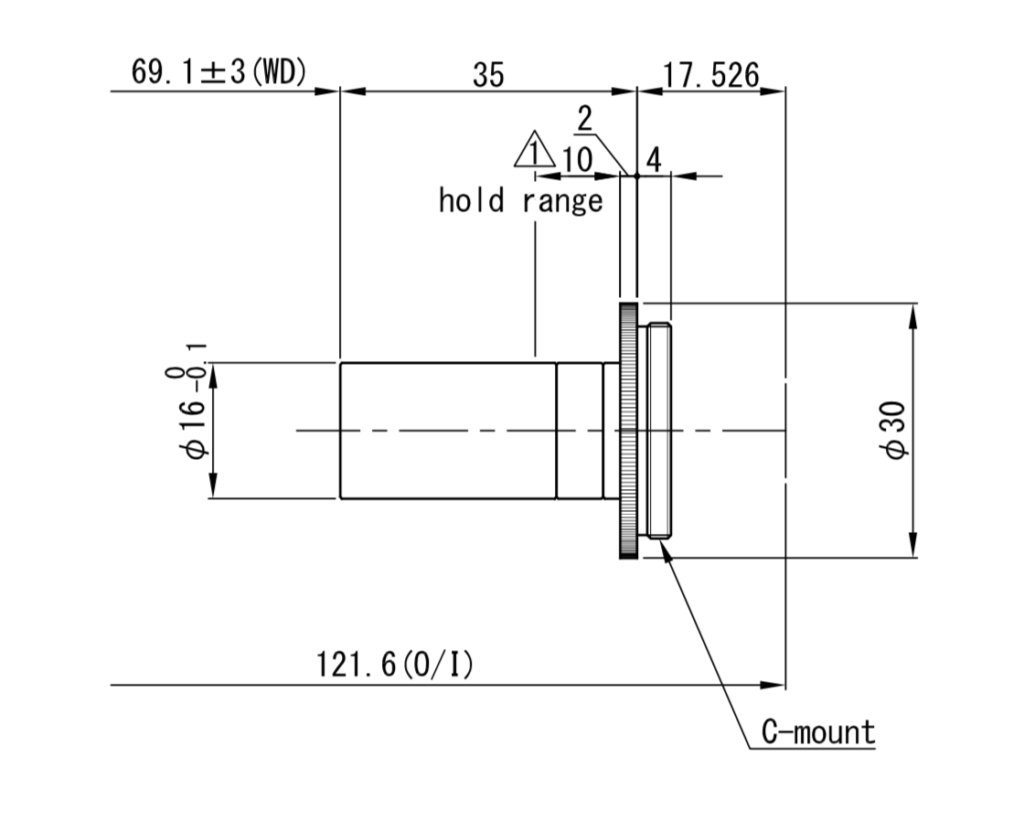

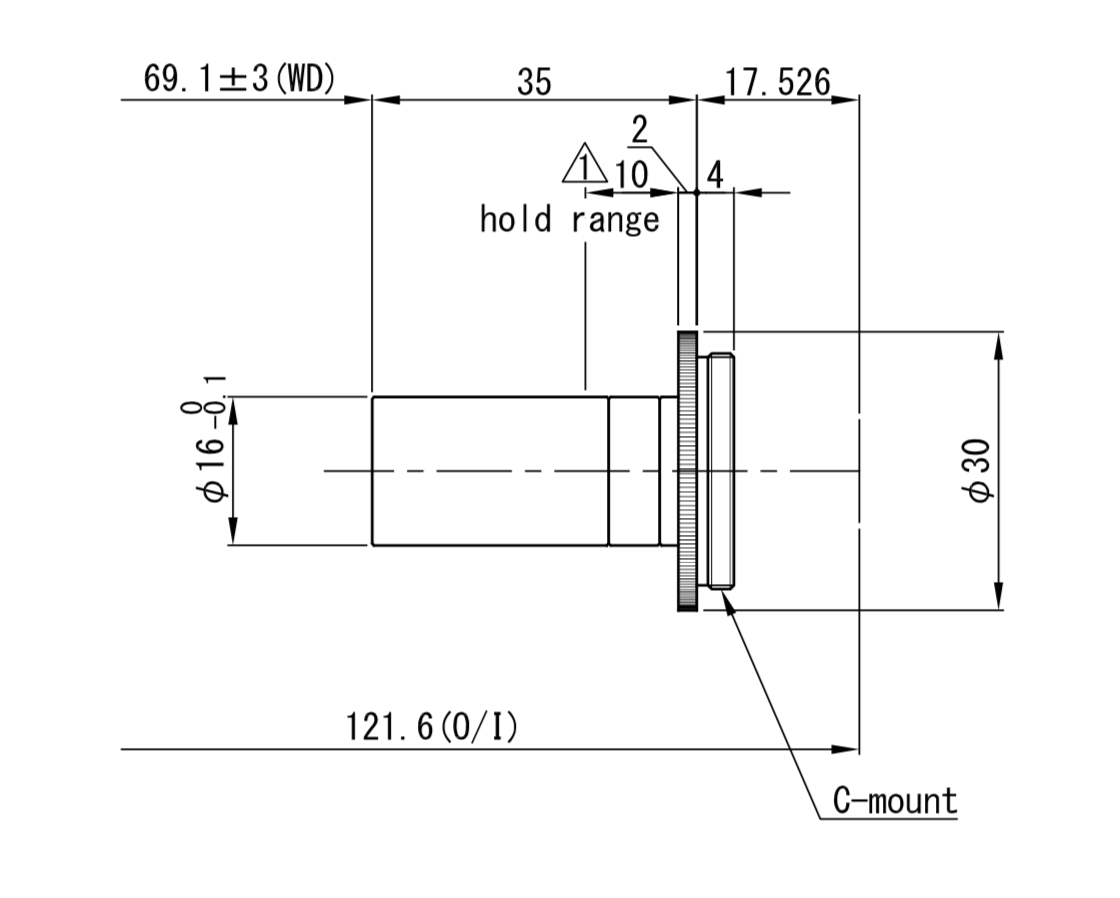

| Dimension | Φ 30 (MAX) × L = 35 mm |
