VS-MC1-60
VS-MC series made to cover a reasonably wide magnification range with almost 0% distortion.Its compact size, in combination with an optical mirror or prism, effectively allows you to place your camera in a convenient location for your application.
| Model | VS-MC1-60 | |
|---|---|---|
| Optical mag. | ×1 ± 5 % | |
| Focal Length | 33.7 mm | |
| 2/3" | 7.1 x 8.4 mm | |
| FOV (VxH mm) | 1/2" | 4.8 x 6.4 mm |
| 1/3" | 3.6 x 4.8 mm | |
| WD | 60.1mm ±3 | |
| O/I (Object & Imager distance) | 135.9 mm | |
| Working F/# | 7.8 | |
| NA | 0.064 | |
| DOF at PCoC φ0.04mm | 0.6 mm | |
| TV distortion | 0.00 % | |
| Relative Illuminance (Y=5.5) | 97 % | |
| Wavelength | Visible | |
| Camera mount | C-mount | |
| Flange Back | 17.526 mm | |
| Sensor size (max.) | 2/3" | |
| Weight (approx.) | 21 | |

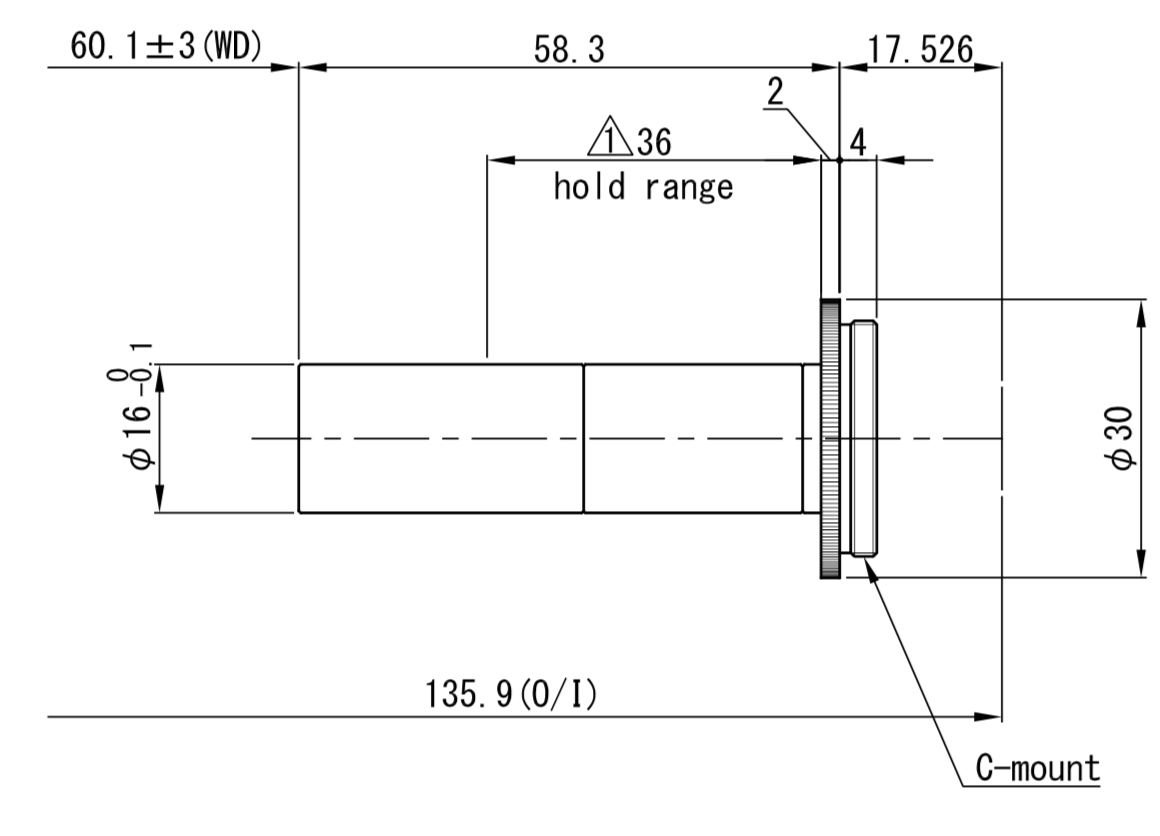

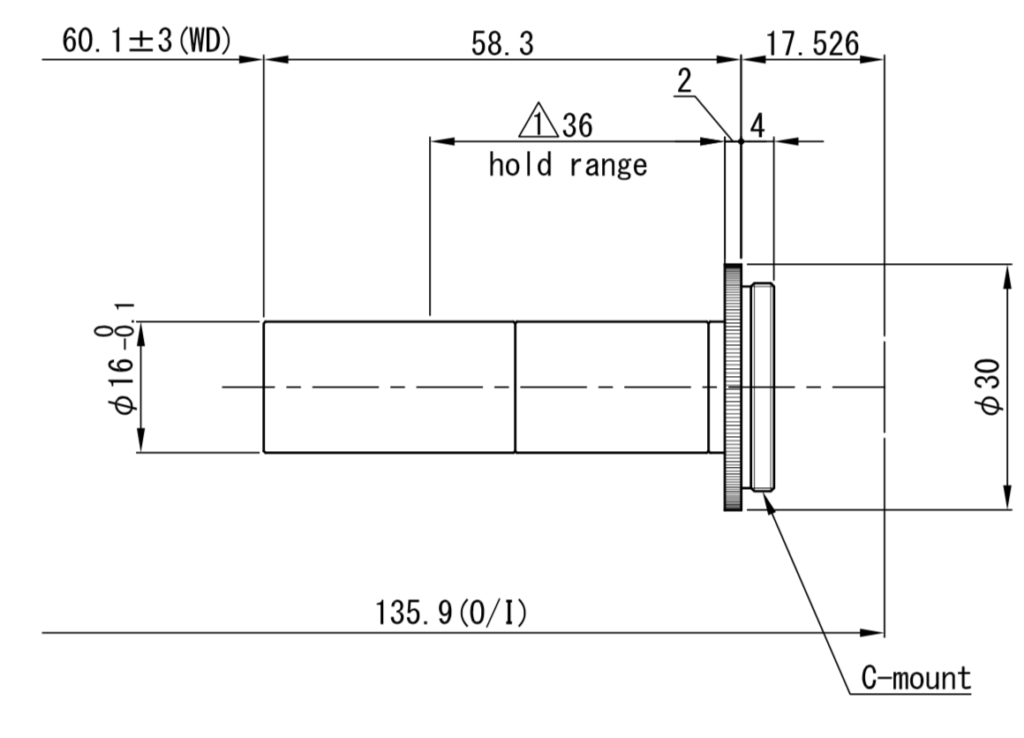

| Dimension | Φ 30 (MAX) ×L = 58.3 mm |
